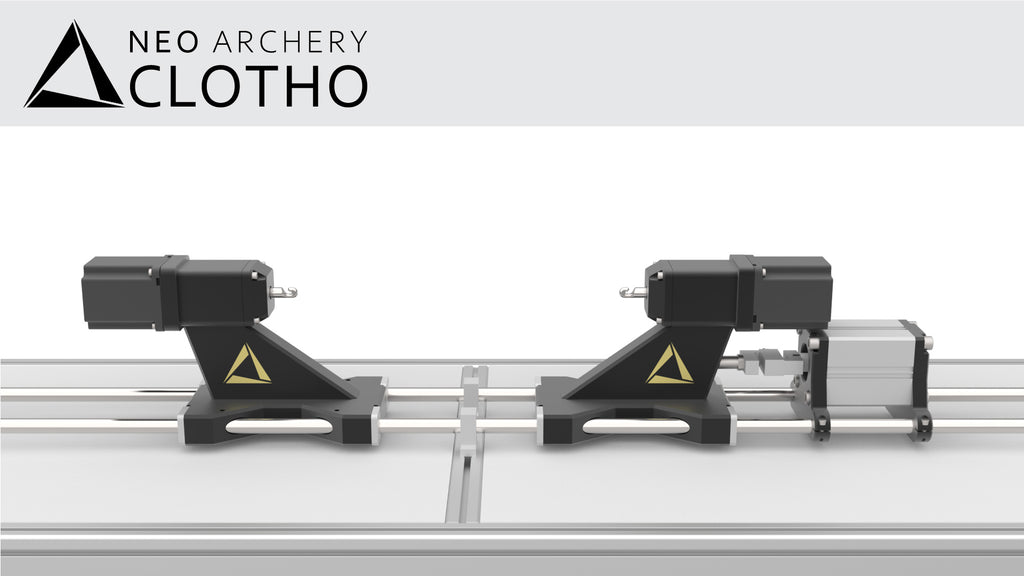

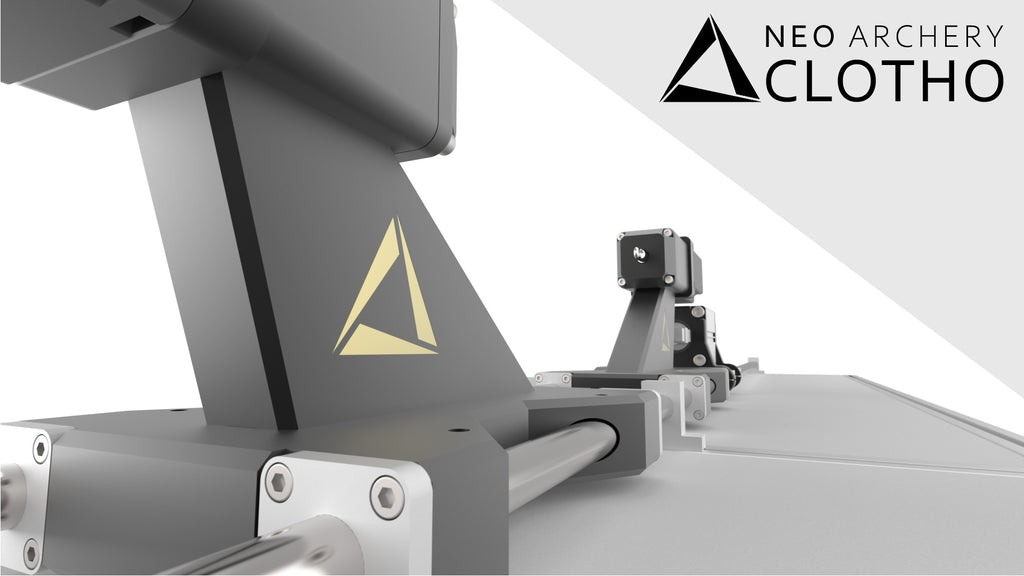

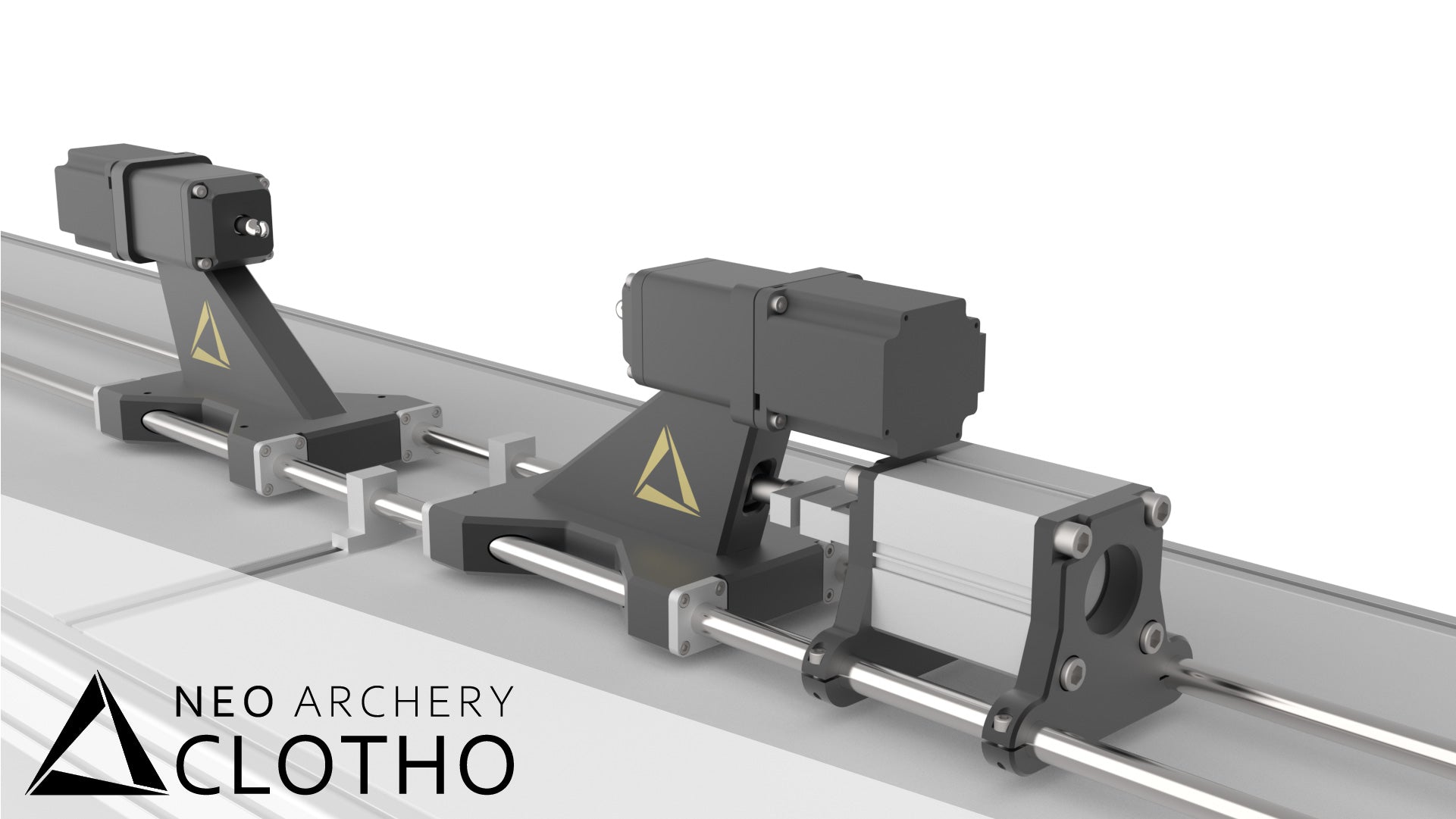

NEO Clotho String Jig
Description
- - The ultimate string jig with integrated string laying posts.
- - Industrial grade steel shafts and linear bearing structure for minimum frictional resistance, best tension consistency and dynamic string length control.
- - Industrial grade Mitsubishi PLC with touch panel controller.
- - Hybrid servo stepper motors provide ultra high speed and precise serving and twisting.
- - Laser sensor real-time monitors and displays string length. Closed-loop system allows auto string length adjustment via motor twisting.
- - Tension sensor real-time monitors and displays string tension. Closed-loop system allows auto air cylinder pressure supply adjustment via EPV(electrical proportional valve).
- - Dual switch pedal controls clockwise/counterclockwise serving and twisting without changing setting on controller.
- - Physical pedal cover and digital pedal lock available for the best of your safety.
- - Air cylinder stretches up to 450kg or 990# lbs at 0.9mpa.
- - Designated number or infinite turns supported for both serving and twisting.
- - Synchronized twists from both ends for even twisting.
- - Half turn twisting supported.
- - Optionally included aluminum 9.84 feet (3 meter) long extrusion work bench offers infinite modular expansion. Can make string up to 94.4”.
- - Multilingual, straight forward user friendly interface.
- - The Waiter (tag-end assistant) tool included.
